AIR CONDITIONER PULLEY/BRACKET CONVERSION

1956 GOLDEN HAWK


  1. Left bracket fastens to where the generator was, on exhaust manifold. This bracket holds the Sanden modern Air Conditioner compressor which aligns & belts to the cast aluminum pulley (bottom right)
  2. Bracket to the right holds Delco approximately 100 amp alternator, hinged on black bolt (left) and adjusting strap on the right.
  3. Also included is an offset oil filler pipe, necessary to miss the alternator.
If you are interested and need more information, contact:

JACK NORDSTROM
4975 IH-35 SOUTH
NEW BRAUNFELS TEXAS 78132
1-800-775-7077

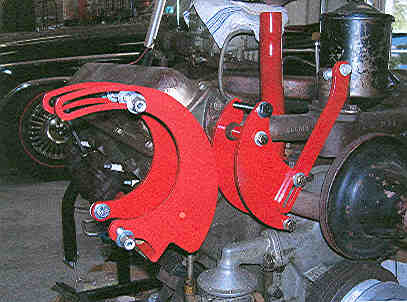

 A/C Brackets
Brackets for AC compressor and Alternator

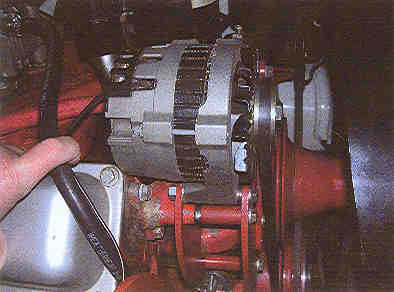

Side view

Side view:

Brackets, pulley, and belts in place.
All fasteners come with the kit.
All part numbers given are NAPA numbers.

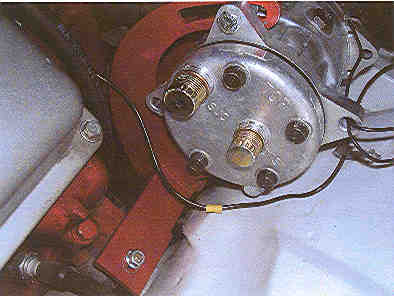

Alternator belt goes around the water pump and harmonic balancer.		 Rear View
Rear view:

A/C bracket bolts to right exhaust manifold where old generator was mounted.
Belt hookup
Belt hookup:
Harmonic shown is pulley #1, for the water pump and generator.
Not shown, pulley #2, is stamped steel for power steering pump.
Cast Aluminum (my pulley) is #3 for A/C compressor.

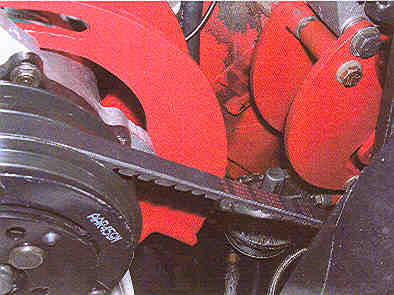

 Front View


Front view

Showing both brackets bolted and belted..
